Product details

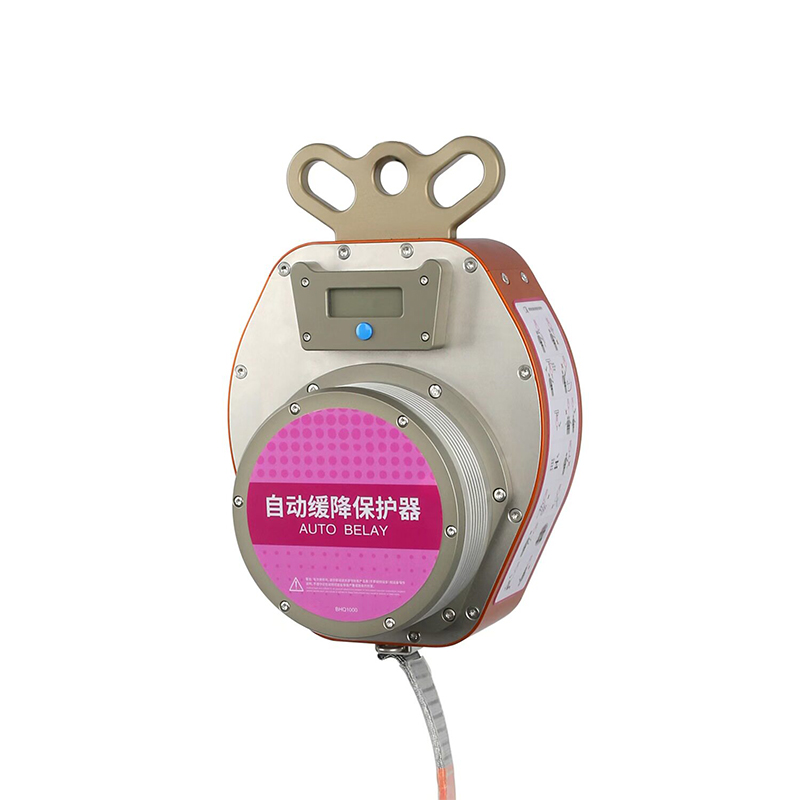

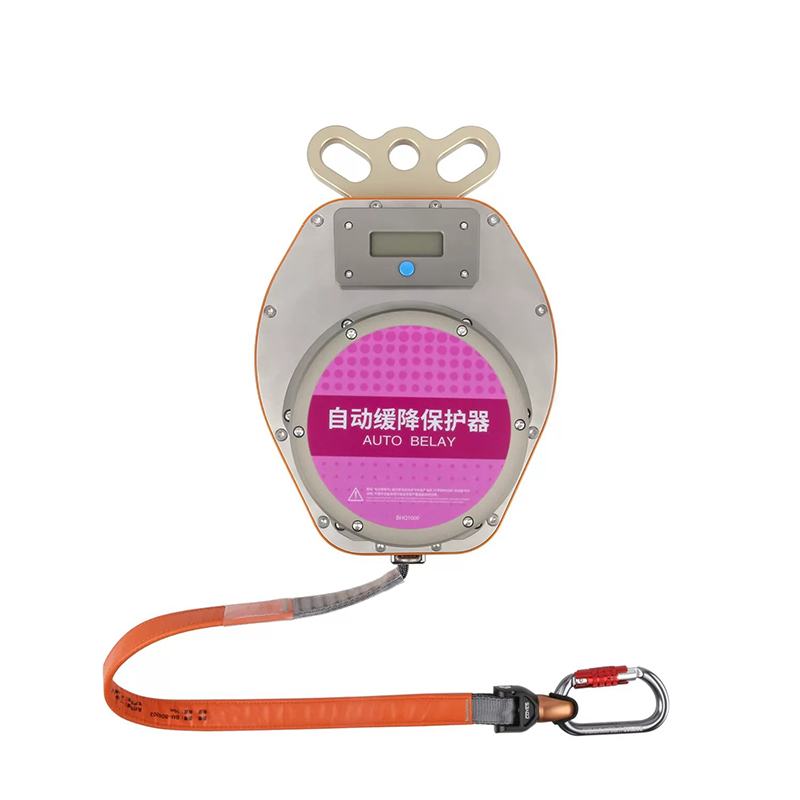

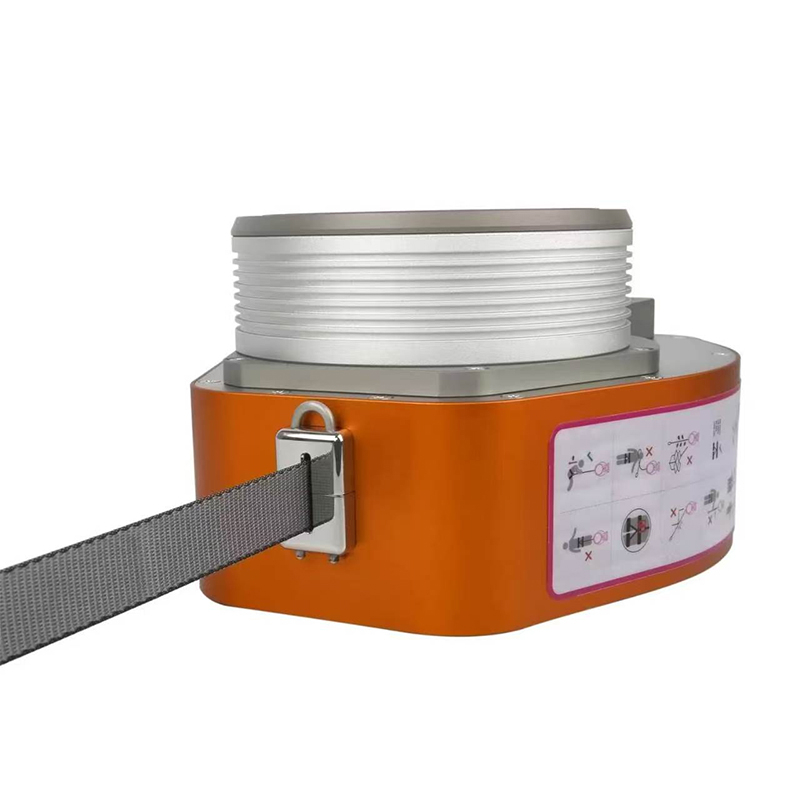

- Aluminium housing: aluminium shell with aluminium, stainless steel and engineering-plastic internals; stainless steel rope exit.

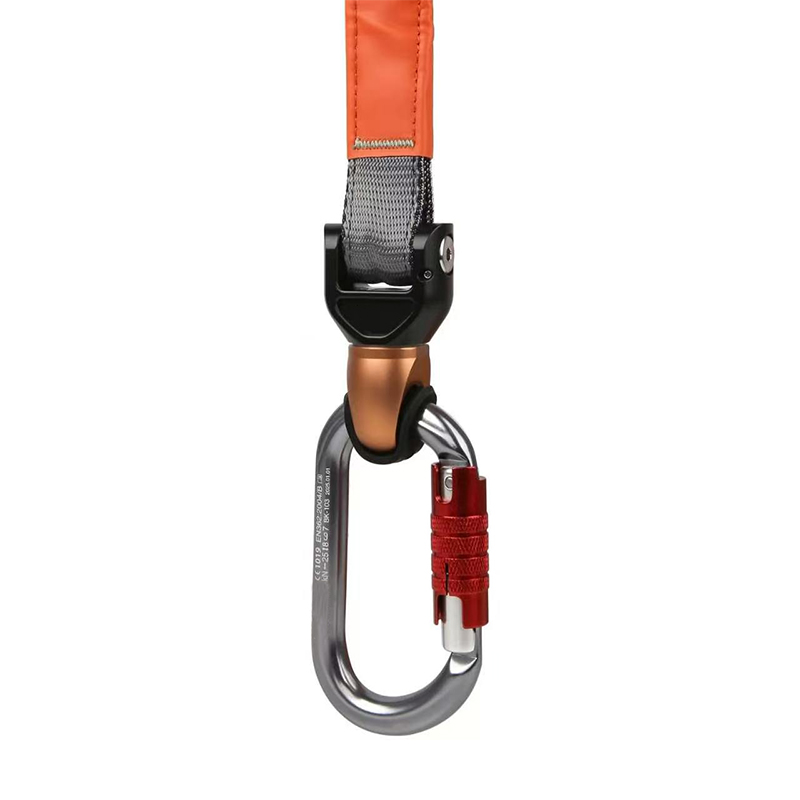

- High-strength webbing: polyester with ultra-high-molecular-weight polyethylene, 25 mm wide, with wear markers on both sides — replace when the marker is reached.
- Metre counter: a built-in counter records the distance travelled (patented); the webbing and connector are separate parts and can be replaced on their own.
- Descent performance: descent speed no more than 2 m/s, retraction around 4 m/s, rated for 11.5–140 kg.
Specifications
| Size | 245 × 370 × 157 mm |
|---|---|
| Net weight | Approx. 15 kg |
| Webbing length | 8.5 m / 12.5 m / 16 m |
| Rated load | 11.5–140 kg |
| Housing material | Aluminium alloy |
| Internal parts | Aluminium alloy, stainless steel, engineering plastic |
| Rope exit | Stainless steel |
| Webbing | High-strength polyester + UHMWPE, 25 mm wide |
| Descent speed | ≤ 2 m/s |
| Retraction speed | Approx. 4 m/s |
| Storage temperature | -10 °C to 45 °C |
| Standard | GB/T 38230-2019 |
| Applications | Climbing walls, amusement parks, training facilities needing fall protection with controlled descent |
Safety notes
- Inspect the product before every use and stop using it immediately if any wear or damage is found.
- Select the product for the application and use it only with compatible certified equipment.
- This is personal protective equipment — do not modify it and do not use it beyond its service life.
Wholesale, OEM and custom requirements: contact our team for pricing, lead time and certification documents.
