Product details

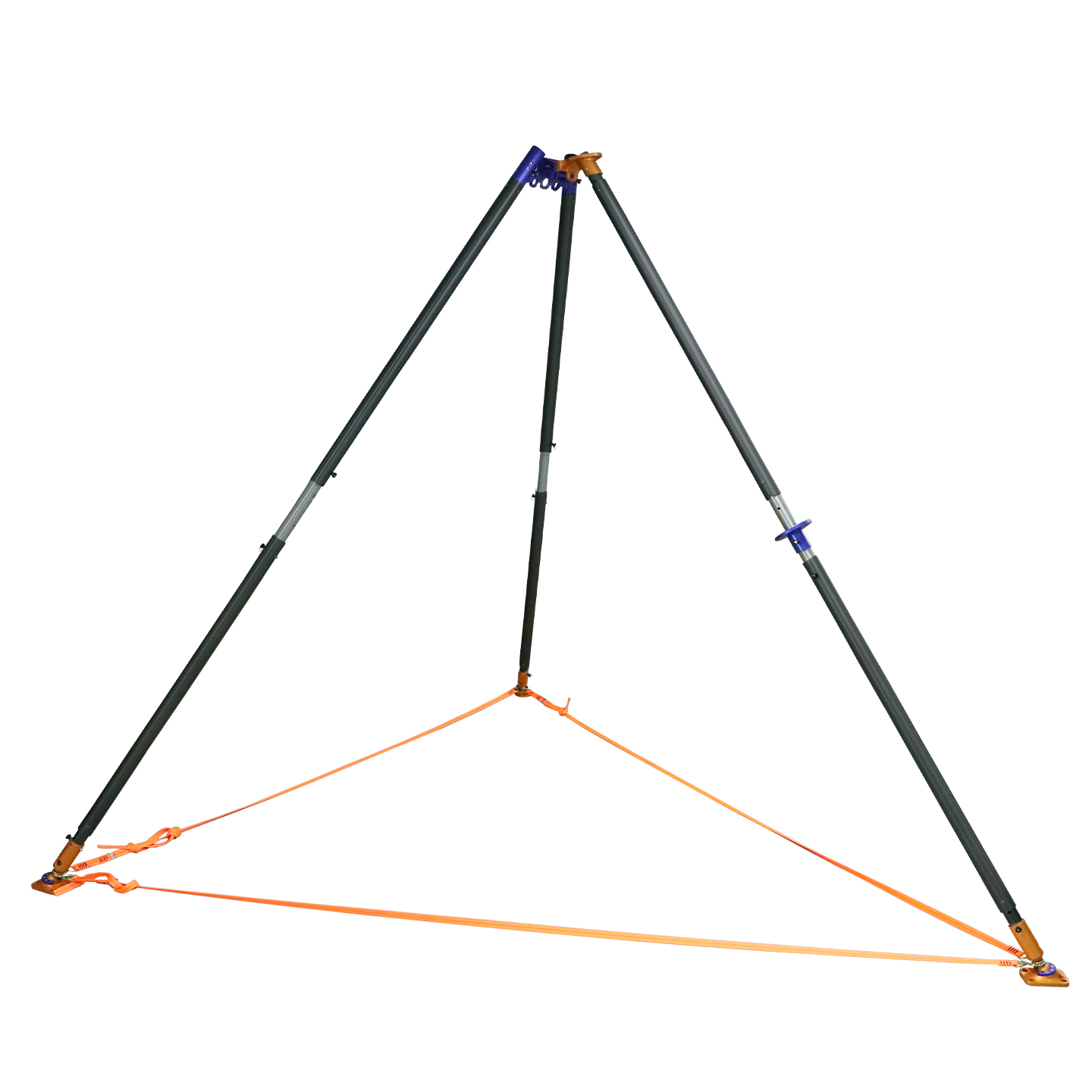

- Stable support structure: adjustable legs and a firm structure provide a safe, steady platform for height rescue and industrial work, coping with complex terrain and carrying a range of equipment; made from high-strength lightweight alloy with seamless construction and an anodised anti-corrosion surface, smooth and burr-free so it will not scratch.

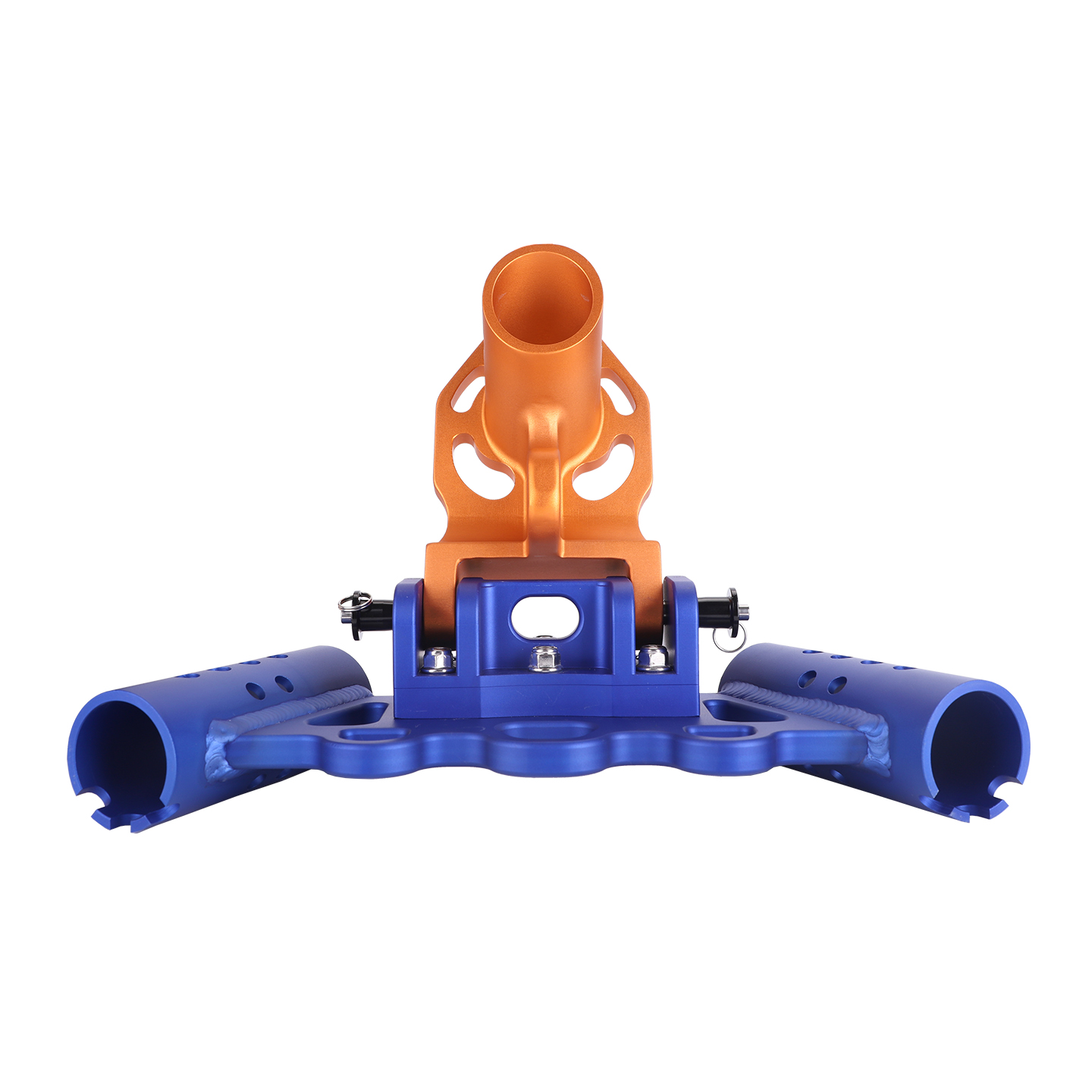

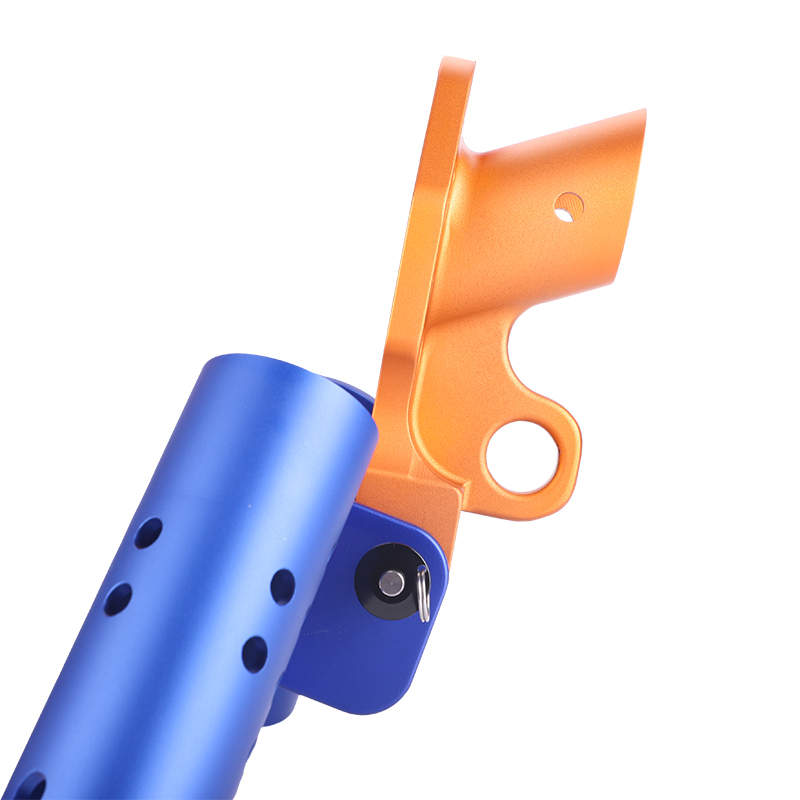

- Flexible set-up: can be set up on one, two or three legs, with one leg adjustable through a wide angle; the tripod head has 4 fixed anchor points for fitting a universal pulley, and the outer wall of each head tube has 1 more anchor point.
- Rescue configuration: the legs are adjustable, the 9-tube version deploys to a minimum height of 2.37 m and folds to 1.5 m; supplied with 16 m of 5 mm steel cable and a manual winch with automatic locking.
- Standard accessories: 3 spike feet, 3 flat feet, 3 outer tubes, 3 inner tubes, 1 A-head, 1 adjusting head, 12 high-strength pins, 3 tensioning straps and 6 auto-locking carabiners; supplied with transport bags (1 pole bag, 1 head-and-foot bag, 1 pin bag).
Specifications
| Material | High-strength lightweight aluminium alloy |
|---|---|
| Working load | 300 kg |
| Outer diameter | 60 mm |
| Inner diameter | 50 mm |
| Deployed height | 9-tube, min. 2.37 m |
| Folded length | 1.5 m |
| Steel cable | Diameter 5 mm, length 16 m |
| Weight | 50 kg (9-tube with accessories) |
| Winch | Manual winch with automatic locking |
| Anchor points | 4 fixed anchor points on the head; 1 anchor point on the outer wall of each head tube |
Safety notes
- Inspect the product before every use and stop using it immediately if any wear or damage is found.
- Select the product for the application and use it only with compatible certified equipment.
- This is personal protective equipment — do not modify it and do not use it beyond its service life.
Wholesale, OEM and custom requirements: contact our team for pricing, lead time and certification documents.
