Product details
- 7075 aviation aluminium: high strength and low weight; size 75 × 110 mm with a 24 mm gate opening.

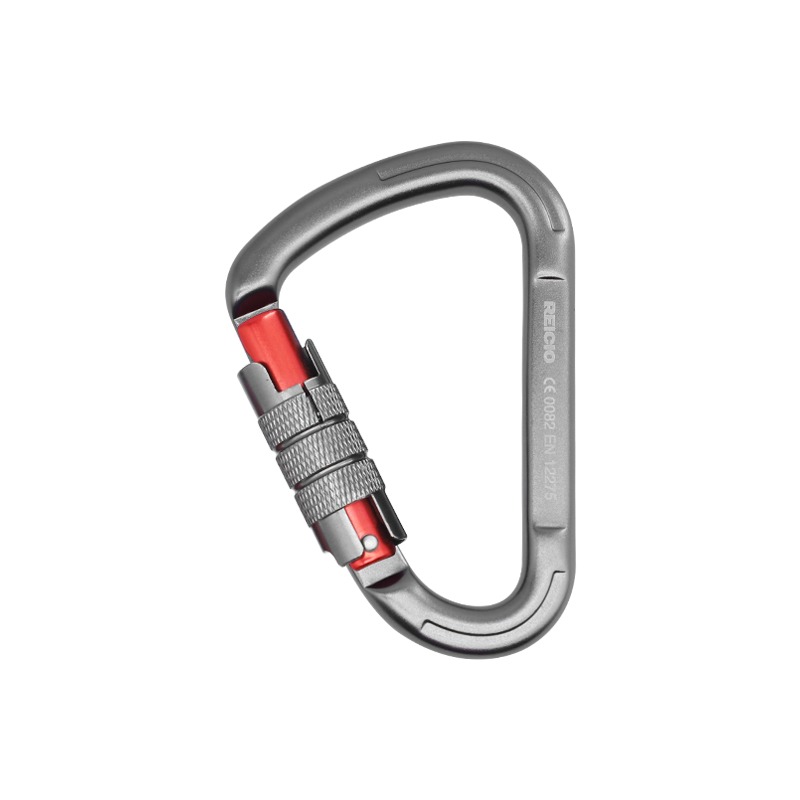

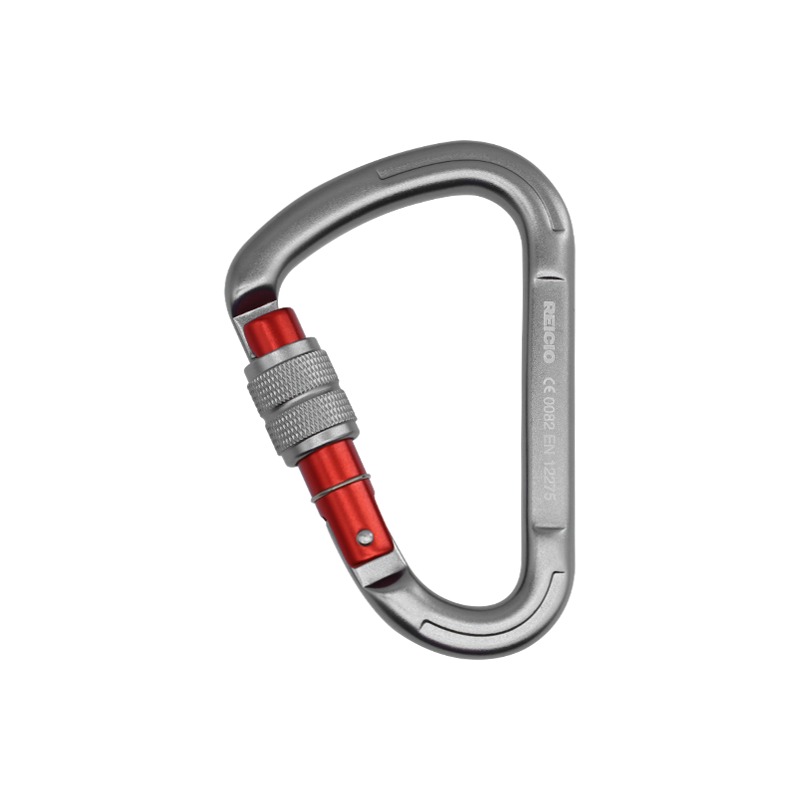

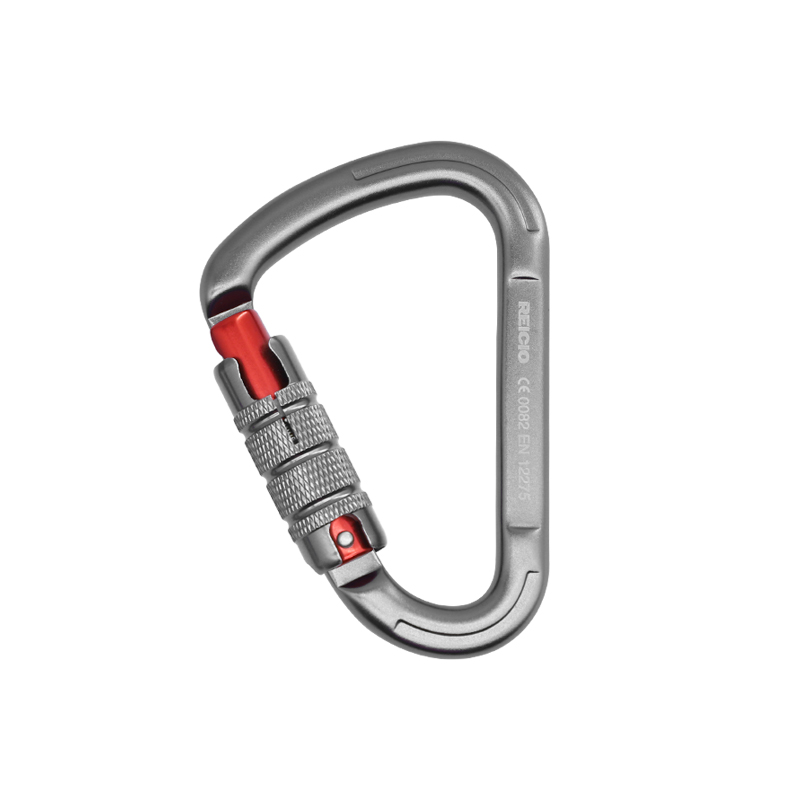

- Three gate options: screw gate (version A), double gate (version B) and triple gate (version C); 25 kN transverse strength and 9 kN longitudinal strength.
- High-capacity pear shape: easy to connect several items, and the gate has a non-slip pattern for easy operation even with gloves on.
Specifications
| Available versions | Screw gate (A) / double gate (B) / triple gate (C) |
|---|---|
| Material | 7075 aviation aluminium |
| Size | 75 × 110 mm |
| Transverse strength | 25 kN |
| Longitudinal strength | 9 kN |
| Open-gate strength | 9 kN |
| Note on axis ratings | Reproduced from the factory specification — contact us if you need the major / minor axis values confirmed for your application. |
| Gate opening | 24 mm |
| Weight | 82.5 g / 86.5 g / 90.5 g |
| Gate type | Screw gate / double gate / triple gate |
Safety notes
- Inspect the product before every use and stop using it immediately if any wear or damage is found.
- Select the product for the application and use it only with compatible certified equipment.
- This is personal protective equipment — do not modify it and do not use it beyond its service life.
Wholesale, OEM and custom requirements: contact our team for pricing, lead time and certification documents.
