Product details

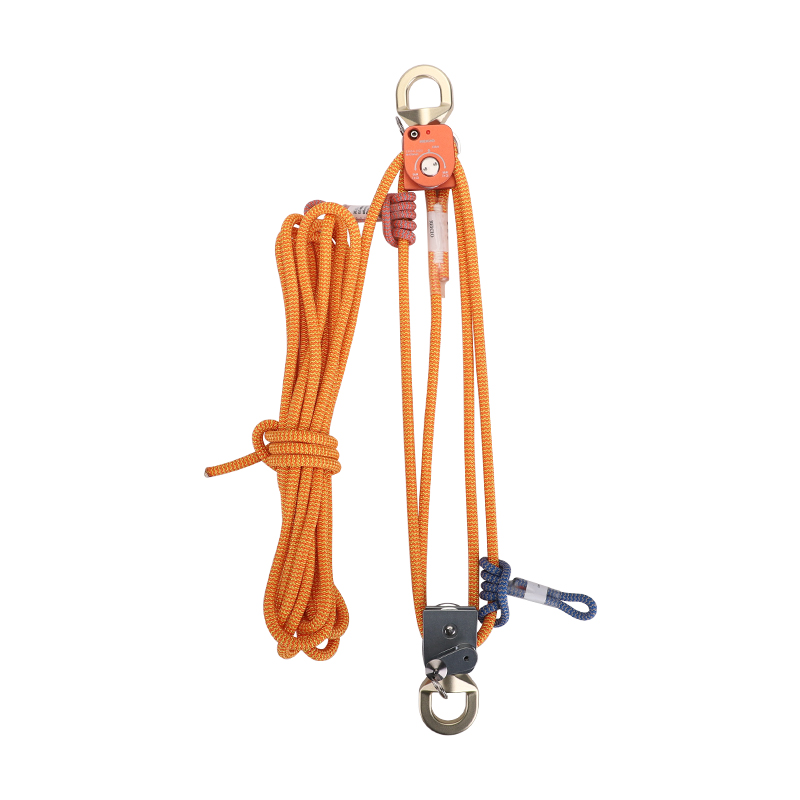

- 4:1 / 5:1 mechanical advantage: the pulley combination greatly increases hauling efficiency.
- 36 kN limit load from high-strength aluminium alloy, steel, nylon and polyester.

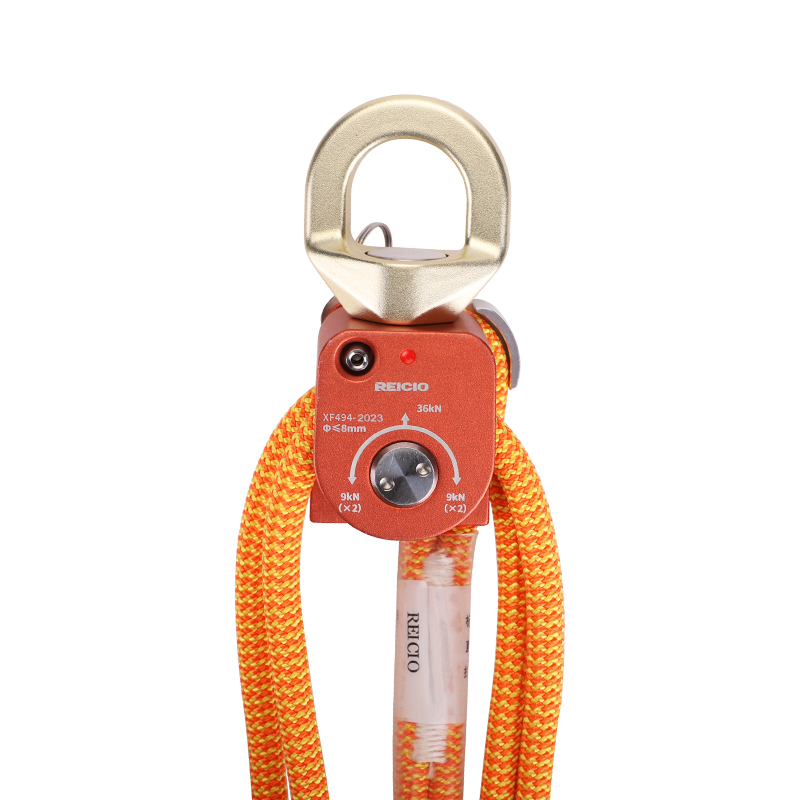

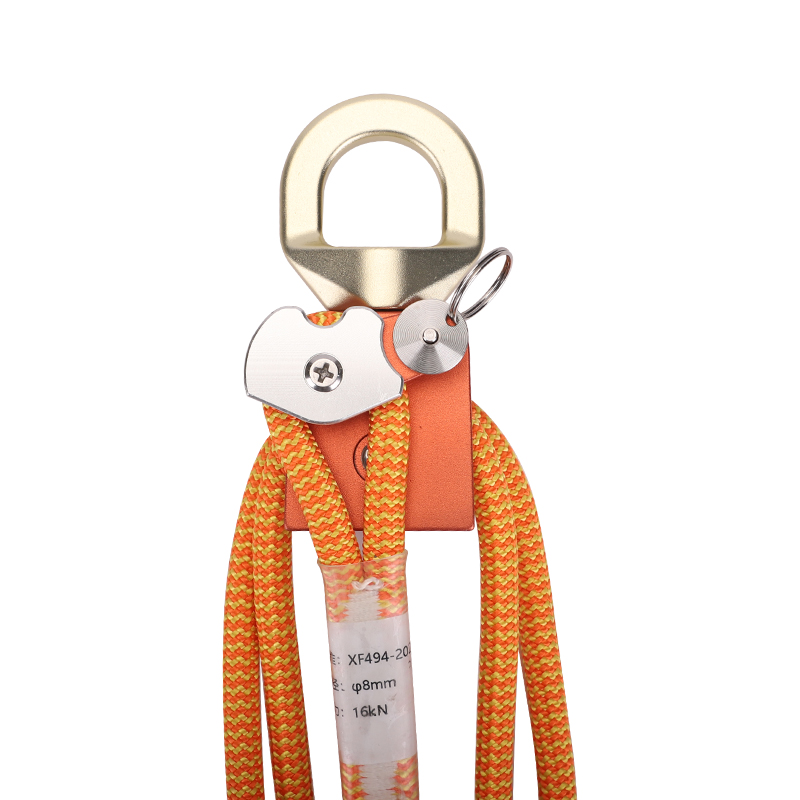

- One pair of swivel pulleys with built-in anti-release pins on the rings.
- 16 m of 8 mm rope included as part of the basic kit.
- Certified to XF494-2023 for fire-fighting equipment.
Specifications
| Material | Aluminium alloy, steel, nylon, polyester |
|---|---|
| Weight | 1794 g (kit weight) |
| Pulley size | 103 × 51 × 58 mm |
| Limit load | 36 kN |
| Rope | 16 m, 8 mm |
| Applications | 4:1 / 5:1 hauling system, stretcher adjustment, lifting and lowering |
| Certification | XF494-2023 |
Safety notes
- Inspect the product before every use and stop using it immediately if any wear or damage is found.
- Select the product for the application and use it only with compatible certified equipment.
- This is personal protective equipment — do not modify it and do not use it beyond its service life.
Wholesale, OEM and custom requirements: contact our team for pricing, lead time and certification documents.
