Product details
- System: 4:1 mechanical advantage, aluminium alloy and polyester rope, ball bearings, for rope up to 16 mm, to XF494-2023.

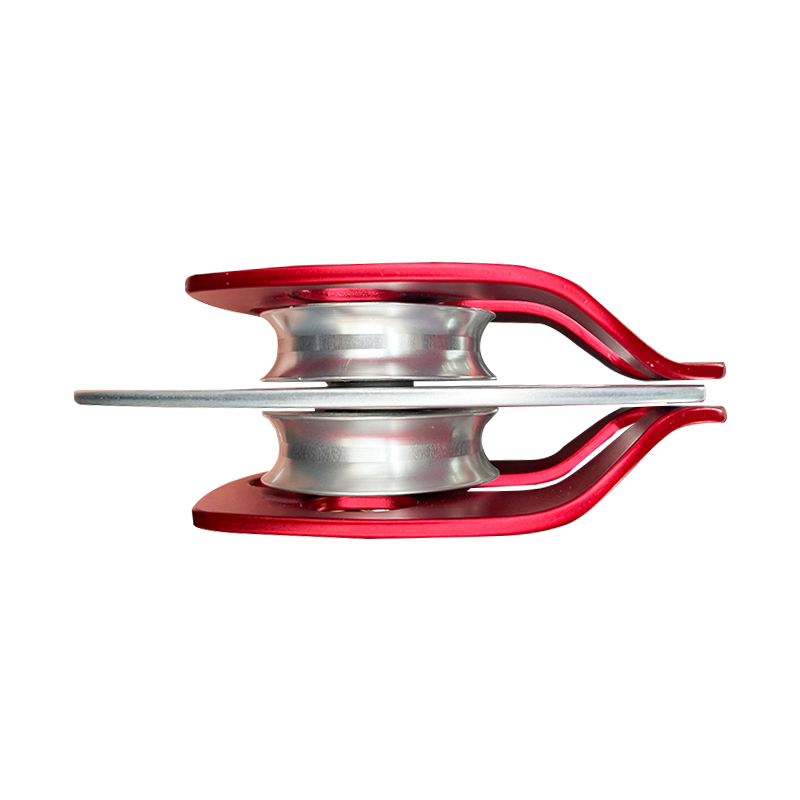

- Double pulleys: high-strength aluminium, 32 kN, 430 g each, red.

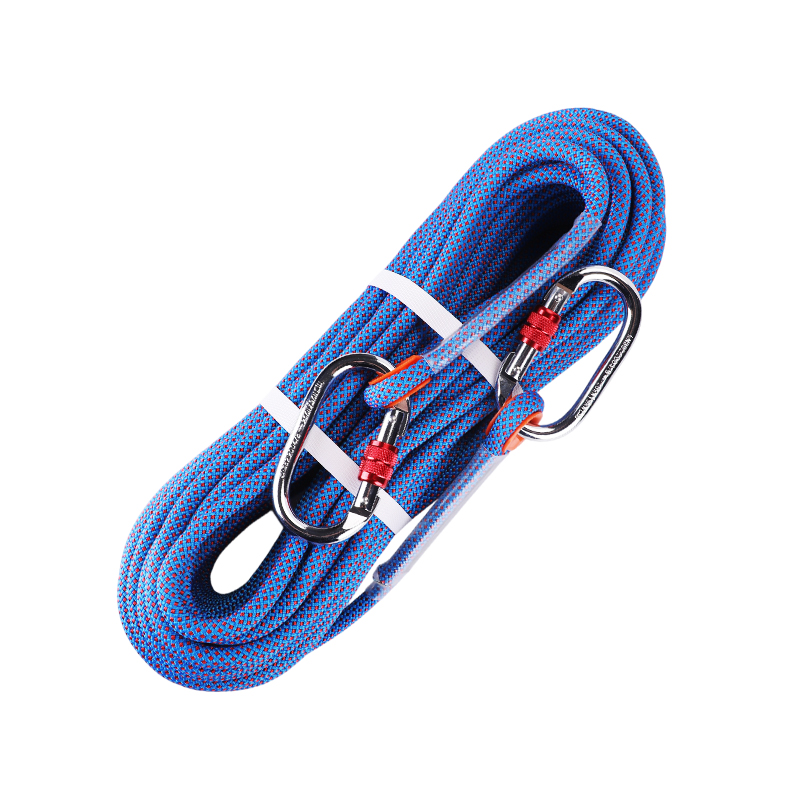

- Rope: polyester, 10.5 mm, 75 g/m, 25 kN.

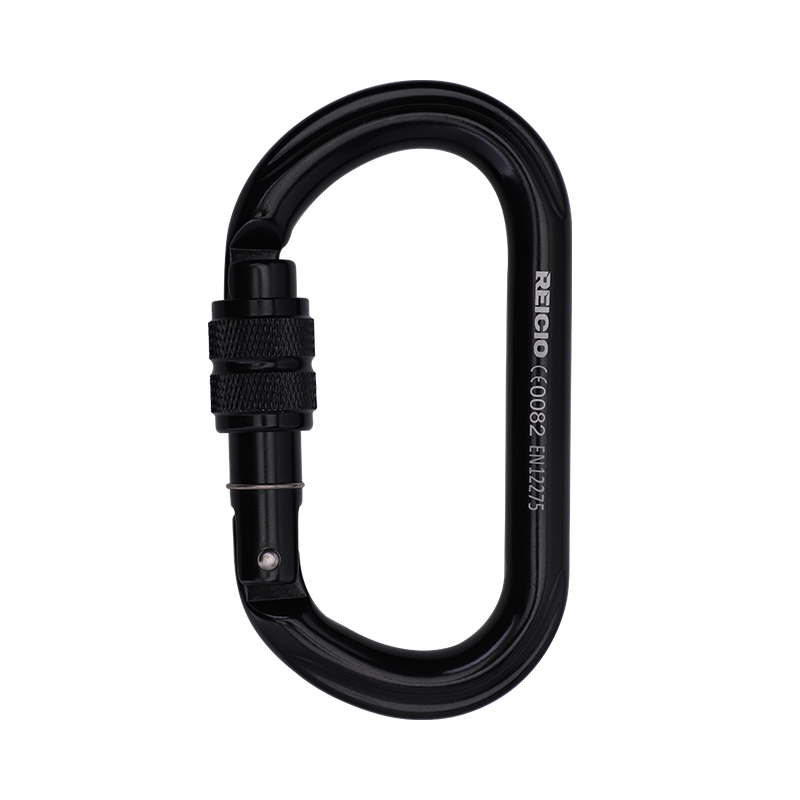

- Hardware: 7075 aluminium O-shape screw-lock carabiners at 25 kN, 76 g, 19 mm gate, plus a nylon prusik cord.
Specifications
| Standard | XF494-2023 |
|---|---|
| System ratio | 4:1 |
| Material | Aluminium alloy | polyester rope |
| Bearing | Ball bearing |
| Rope diameter | ≤16 mm |
| Static strength | 32 kN |
| Dynamic strength | 16 kN |
| Double pulley | High-strength aluminium | rope ≤16 mm | 32 kN | 430 g | ball bearing | red |
| Safety rope | Polyester | 10.5 mm | 75 g/m | 25 kN | assorted colours |

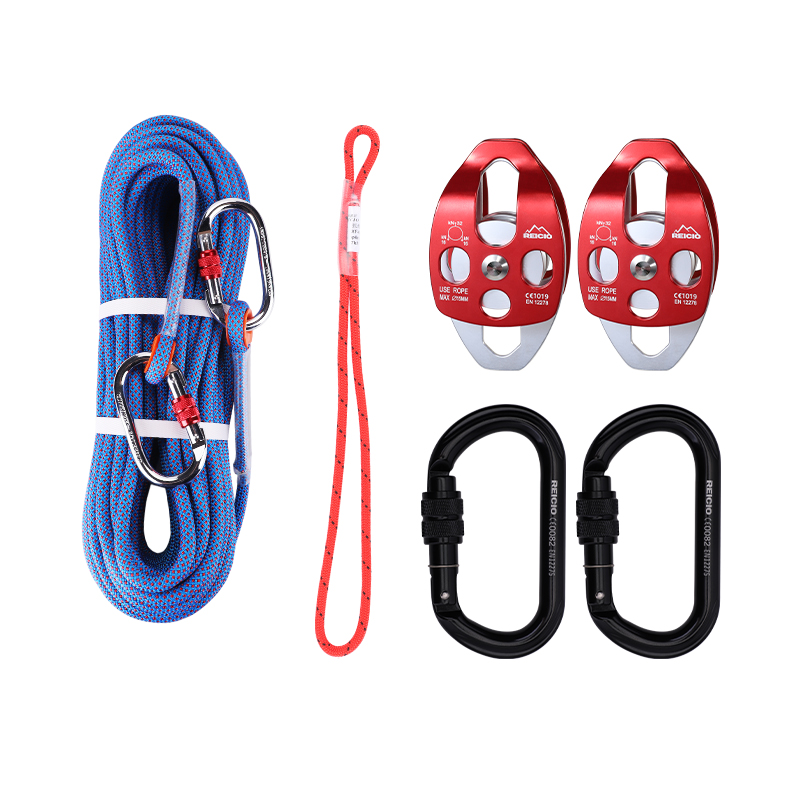

| Kit contents | 10.5 mm safety rope ×1 (with 2 O-shape carabiners), double pulley ×2, O-shape screw-lock carabiner ×2, prusik cord ×1, carry bag ×1, gloves ×1 pair |
| Applications | Outdoor crossing, overhead ziplines, air-conditioning installation, training protection, hauling and lifting |
Safety notes
- Inspect every component before each use and stop using anything that shows wear or damage.
- Use each item only with compatible certified equipment and for the application it is intended.
- This is personal protective equipment — do not modify it and do not use it beyond its service life.
Wholesale, OEM and custom requirements: contact our team for pricing, lead time and certification documents.
