Product details

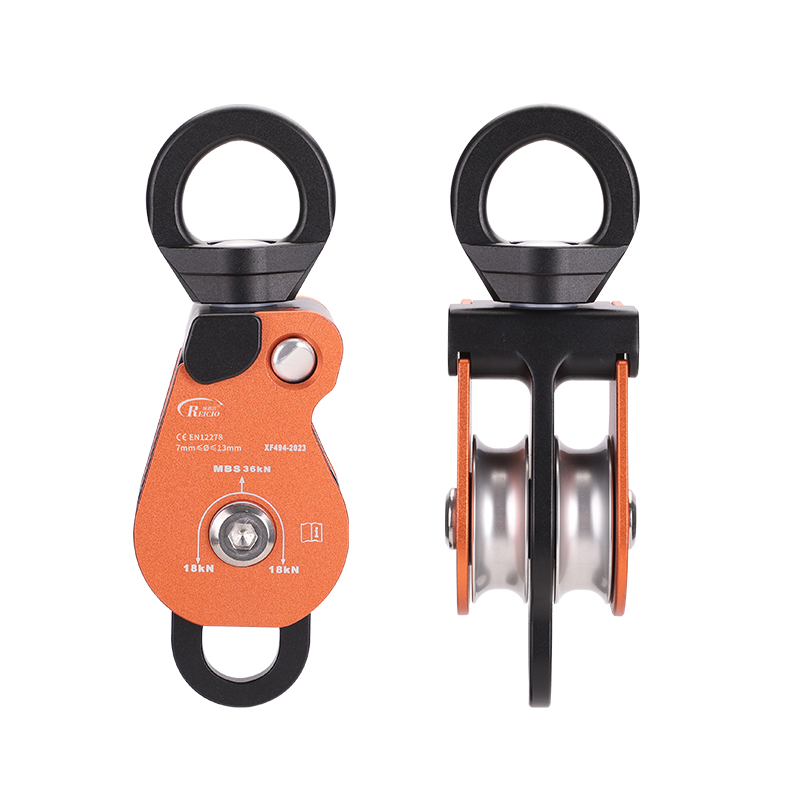

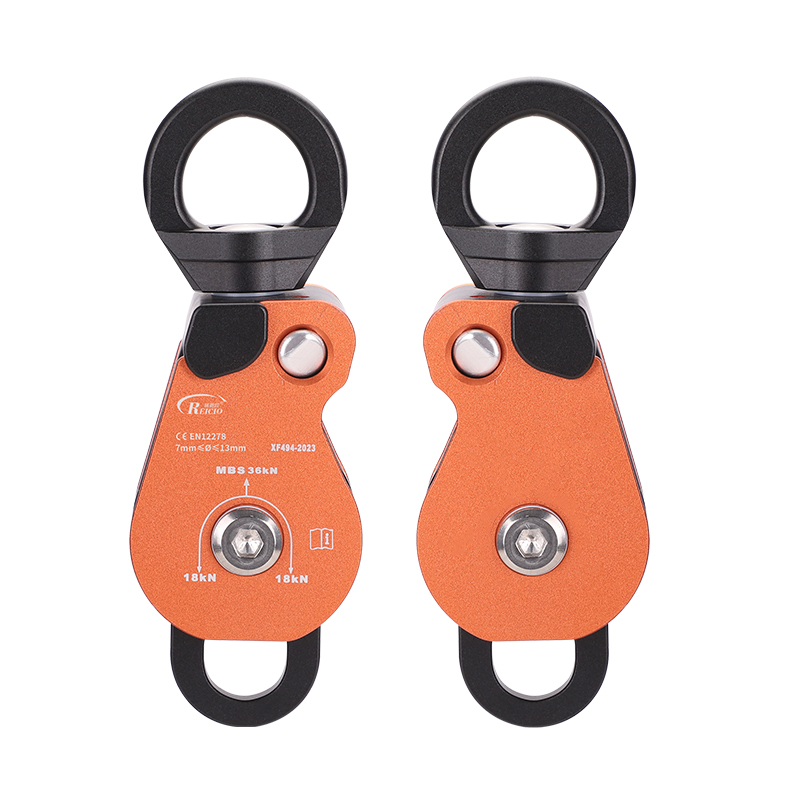

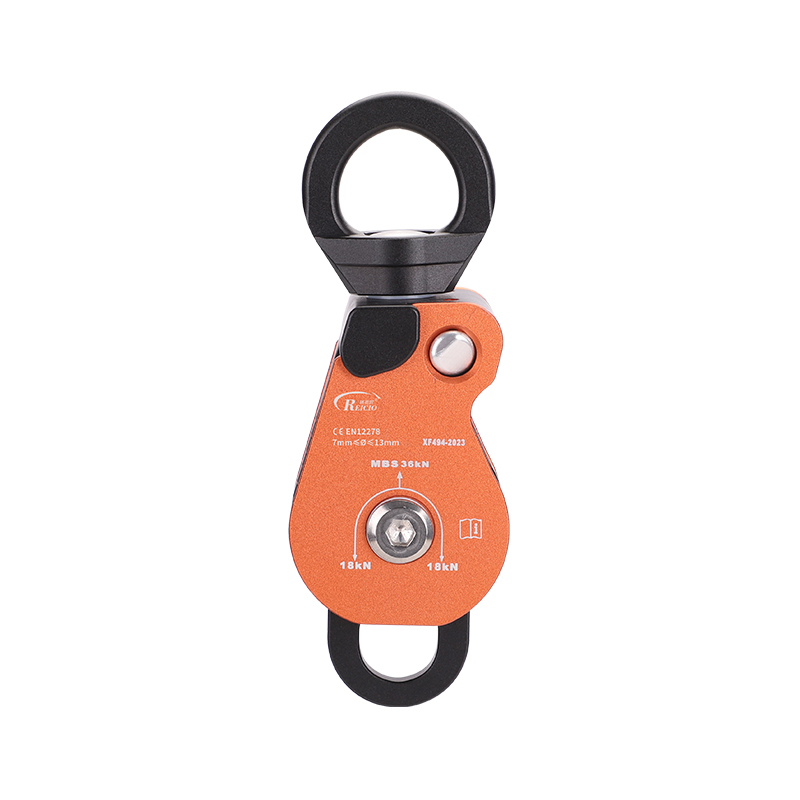

- 1.5 in swivel double pulley designed to simplify the set-up of mechanical-advantage systems or to change the direction of the load.
- The moving side plate opens by pressing the button twice; up to three carabiners can be connected.
- Limit load 36 kN.
- Suitable for rope diameters of 7-13 mm.
Specifications
| Material | Aluminium alloy |
|---|---|
| Weight | 395 g |
| Dimensions | 161 × 56 × 51 mm |
| Bearing | Sealed ball bearing |
| Rope diameter | 7-13 mm |
| Sheave outer diameter | 46 mm |
| Sheave inner diameter | 38 mm |
| Limit load | 36 kN |
| Maximum working load | 22 kN |
| Efficiency | 95% |
Safety notes
- Inspect the product before every use and stop using it immediately if any wear or damage is found.
- Select the product for the application and use it only with compatible certified equipment.
- This is personal protective equipment — do not modify it and do not use it beyond its service life.
Wholesale, OEM and custom requirements: contact our team for pricing, lead time and certification documents.
