Product details

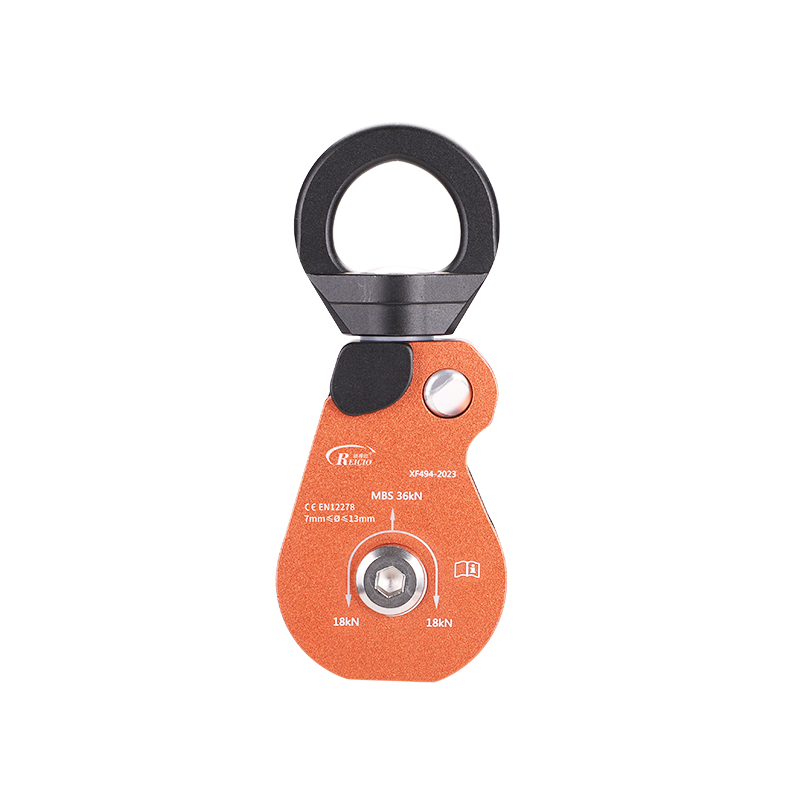

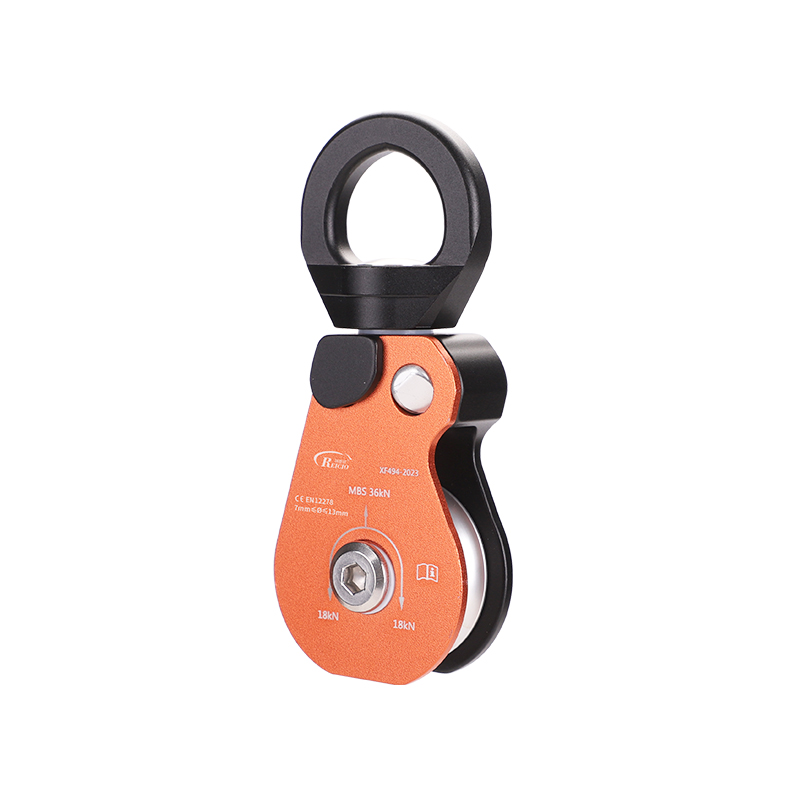

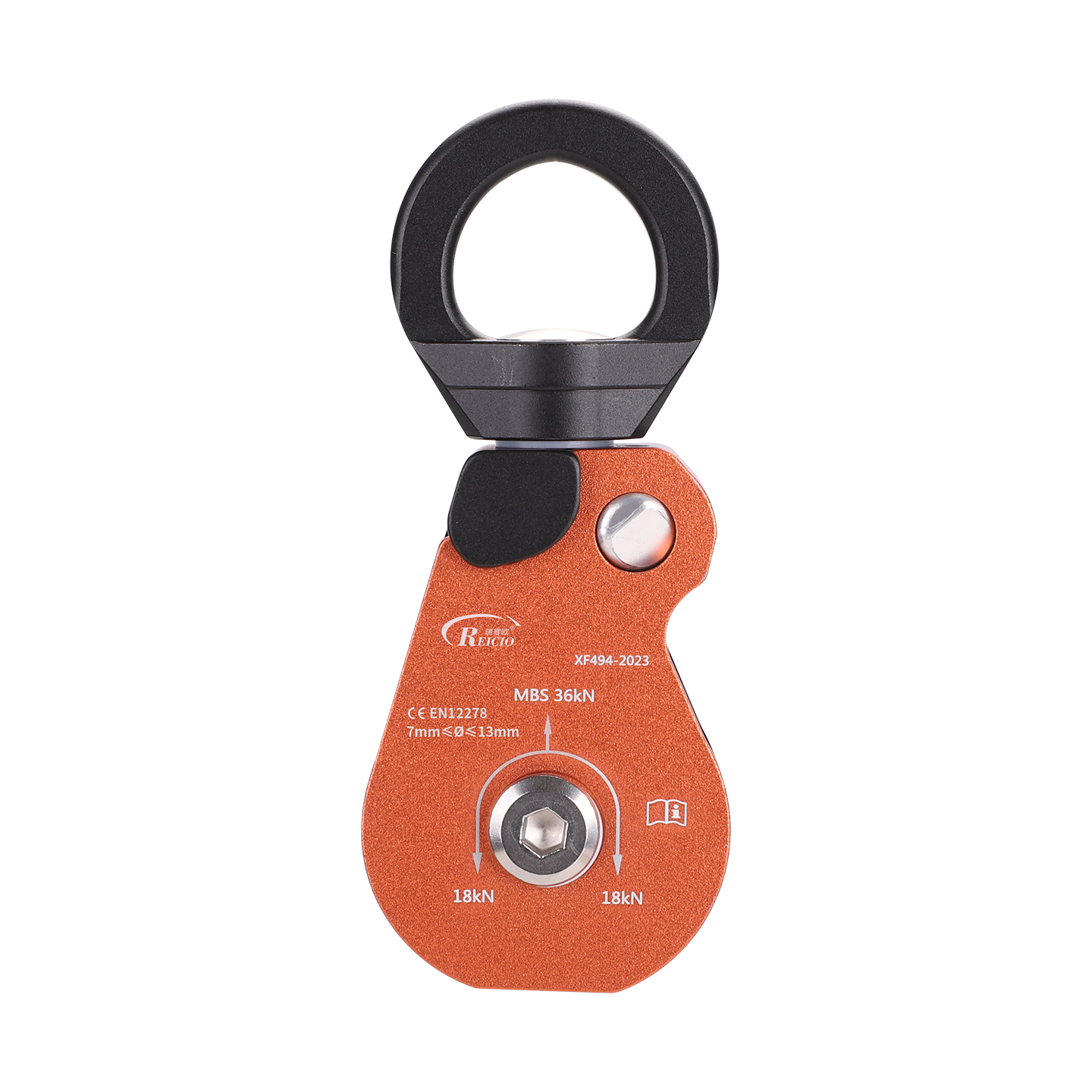

- 1.5″ swivel single pulley designed to simplify mechanical advantage systems or change the direction of the load.
- Movable side plate: press the button twice to open; up to three carabiners can be connected.
- Sealed ball bearing: 46 mm outer / 38 mm inner sheave with 95 % efficiency.
Specifications
| Material | Aluminium alloy |
|---|---|
| Size | 135 × 56 × 26 mm |
| Bearing | Sealed ball bearing |
| Sheave | Outer diameter 46 mm, inner diameter 38 mm |
| Maximum working load | 11 kN × 2 = 22 kN |
| Limit load | 36 kN |
| Rope diameter | 7-13 mm |
| Weight | 250 g |
| Efficiency | 95 % |
Safety notes
- Inspect the product before every use and stop using it immediately if any wear or damage is found.
- Select the product for the application and use it only with compatible certified equipment.
- This is personal protective equipment — do not modify it and do not use it beyond its service life.
Wholesale, OEM and custom requirements: contact our team for pricing, lead time and certification documents.
