Product details
- Steel construction: 6 mm thick with a 25 kN breaking strength and a robust structure for a range of connection methods.

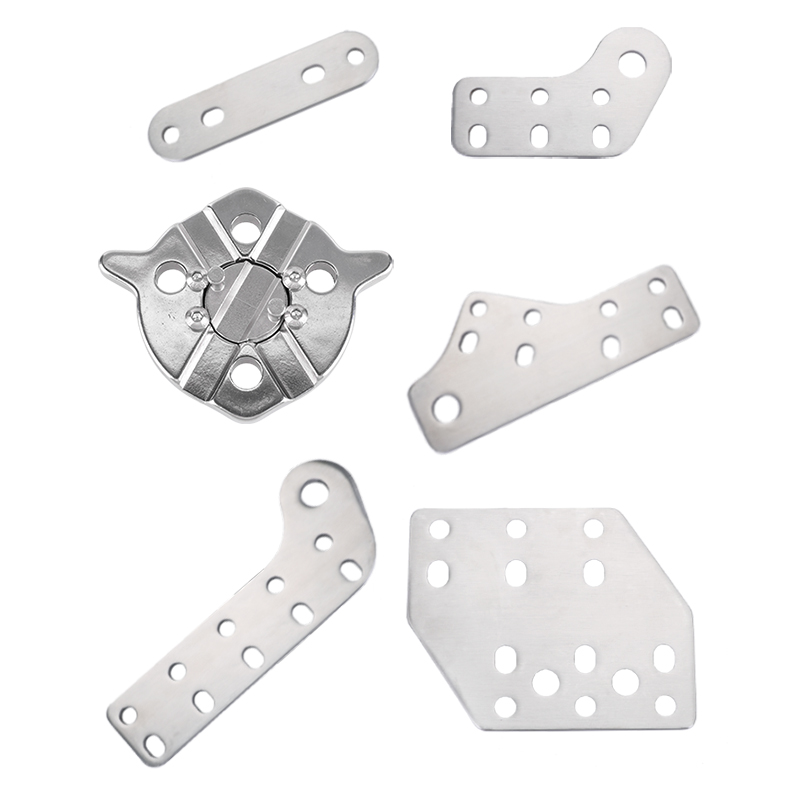

- Multiple versions: two-row, three-row, four-row, five-row and six-row connecting plates.

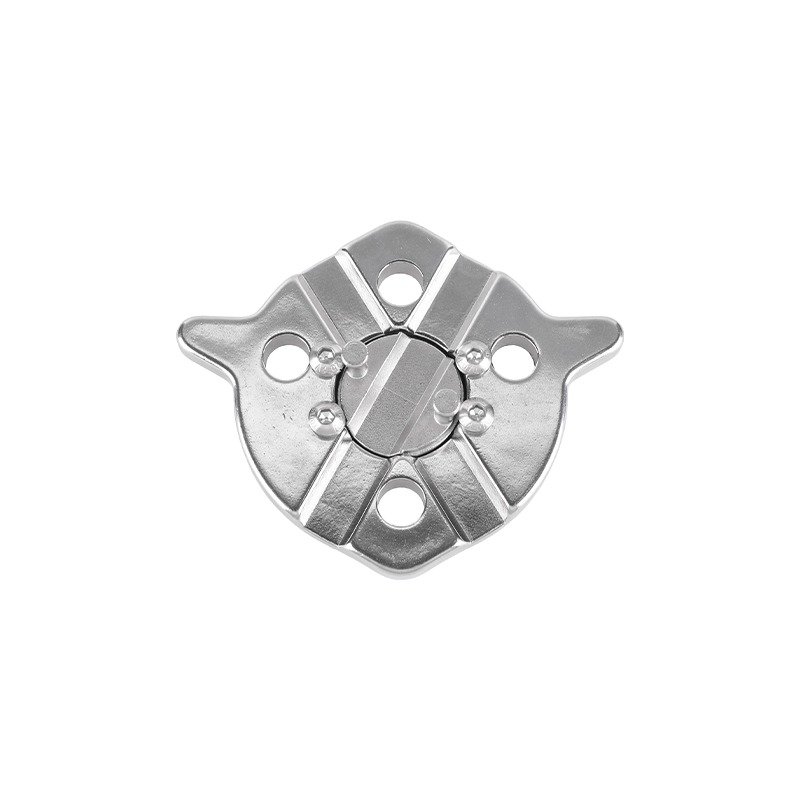

- Round adapter plate is also available and can be used with a stainless steel U-clamp.
Specifications
| Material | Steel |
|---|---|
| Thickness | 6 mm |
| Breaking strength | 25 kN |
| Available versions | Two-row plate / three-row plate / four-row plate / five-row plate / six-row plate / round adapter plate |
| Hole diameter | 11/15 mm / 11/15/18 mm / 11/15/18 mm / 11/15/18 mm / 11/14/15 mm / 13 mm |
| Weight | Approx. 228 g / 305 g / 470 g / 409 g / 650 g / 425.5 g |
Safety notes
- Inspect the product before every use and stop using it immediately if any wear or damage is found.
- Select the product for the application and use it only with compatible certified equipment.
- This is personal protective equipment — do not modify it and do not use it beyond its service life.
Wholesale, OEM and custom requirements: contact our team for pricing, lead time and certification documents.
