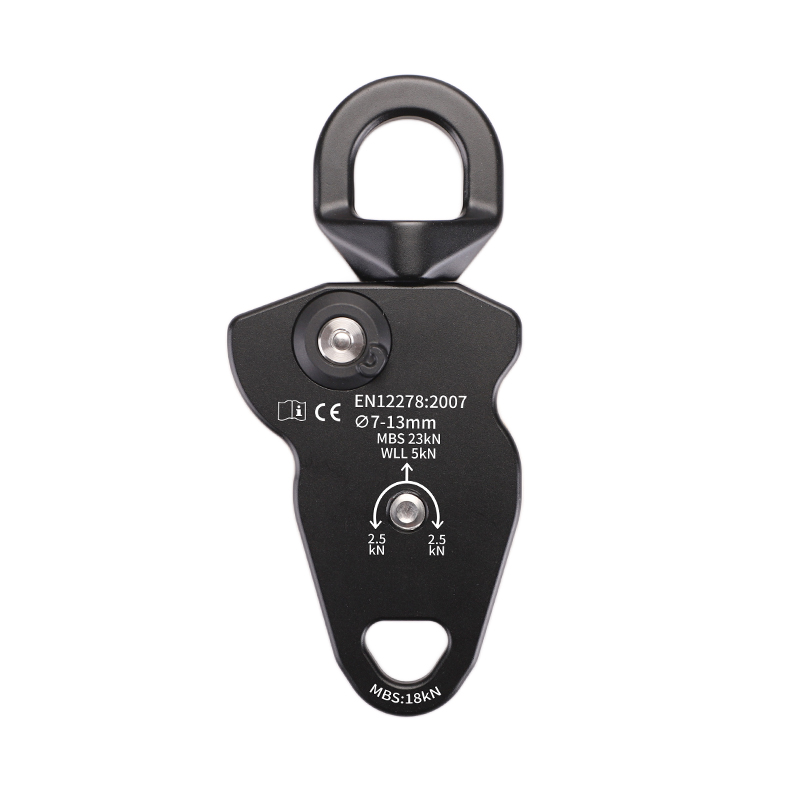

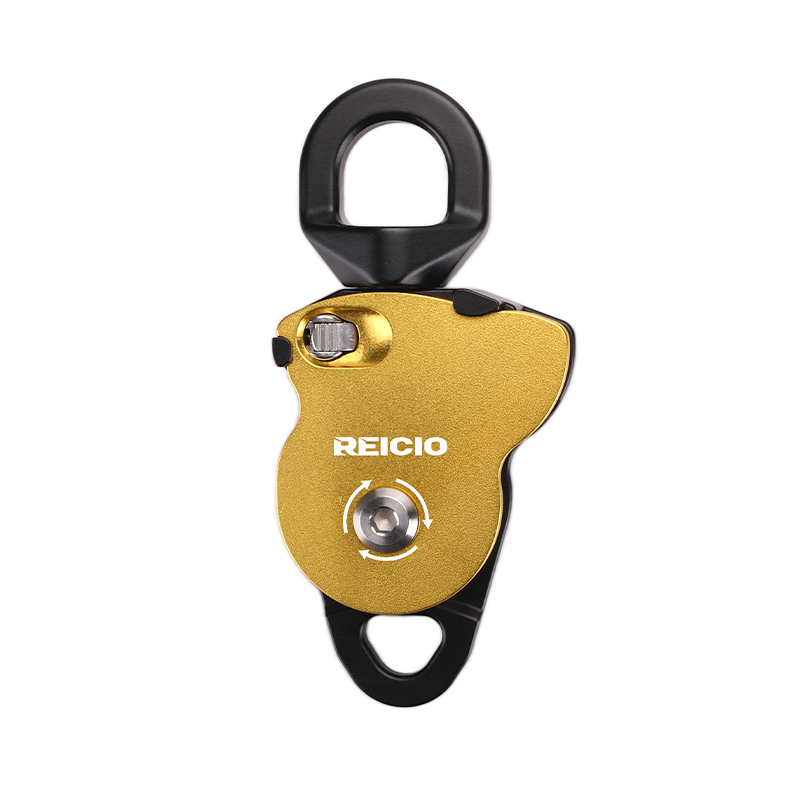

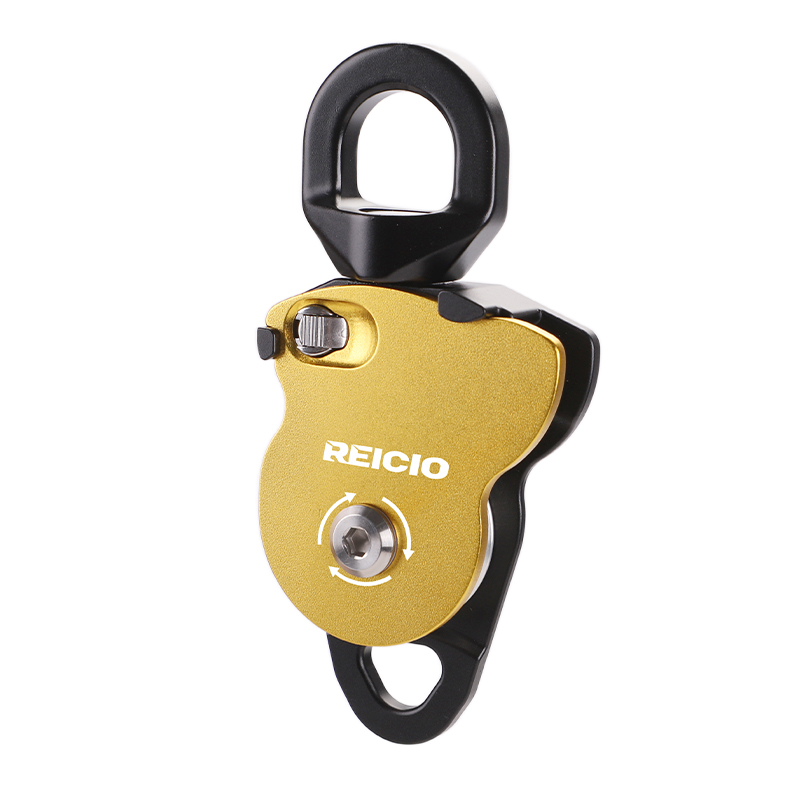

Product details
- Aluminium body with an openable side plate; the movable side plate opens in three stages, quickly and conveniently.
- Large-diameter sheave with a sealed ball bearing gives ≥90 % hauling efficiency and suits moving heavy loads.
- Swivel design allows orientation under load and direct connection to carabiners, rope or slings.
- The cam lock lets it be used as a simple pulley, and the auxiliary attachment point allows a hauling system to be set up.
Specifications
| Material | Aluminium alloy |
|---|---|
| Rope diameter | 8-13 mm |
| Weight | 327 g |
| Dimensions | 163 × 75 × 24 mm |
| Sheave | Outer diameter 46 mm, inner diameter 38 mm |
| Efficiency | ≥90 % |
| Certification | XF494-2023; EN567 |
Safety notes
- Inspect the product before every use and stop using it immediately if any wear or damage is found.
- Select the product for the application and use it only with compatible certified equipment.
- This is personal protective equipment — do not modify it and do not use it beyond its service life.
Wholesale, OEM and custom requirements: contact our team for pricing, lead time and certification documents.
