Product details

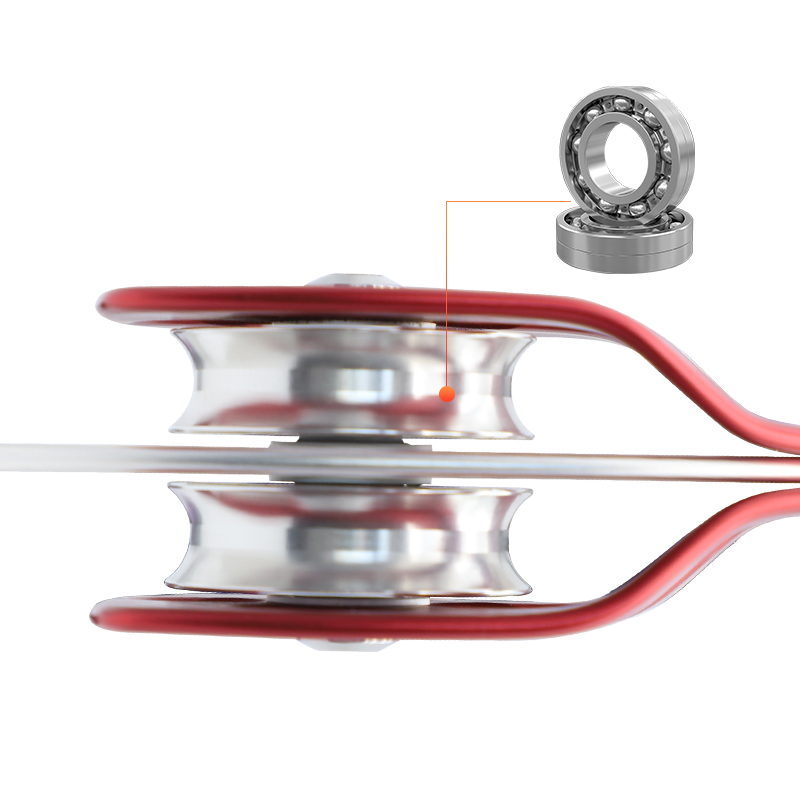

- Aluminium sheave with sealed ball bearings — suited to flexible rope.
- Oval attachment points take a range of carabiners and lanyards and distribute the load evenly.
- Reinforced side plates with ribs for added rigidity.
- Upper and lower oval holes are both load-bearing — up to three carabiners can be attached.
Specifications
| Material | Aluminium alloy |
|---|---|
| Rope diameter | ≤16 mm |
| Weight | 426 g |
| Strength | 32 kN |
| Working load | 8 kN |
| Single-side load | 2 kN |
| Dimensions | 150 × 80 mm |
| Sheave outer diameter | 57 mm |
| Sheave inner diameter | 49 mm |
| Certification | CE EN12278 / XF494-2023 |
Safety notes
- Inspect the product before every use and stop using it immediately if any wear or damage is found.
- Select the product for the application and use it only with compatible certified equipment.
- This is personal protective equipment — do not modify it and do not use it beyond its service life.
Wholesale, OEM and custom requirements: contact our team for pricing, lead time and certification documents.
